Aeronautica Project: Theme Park Design

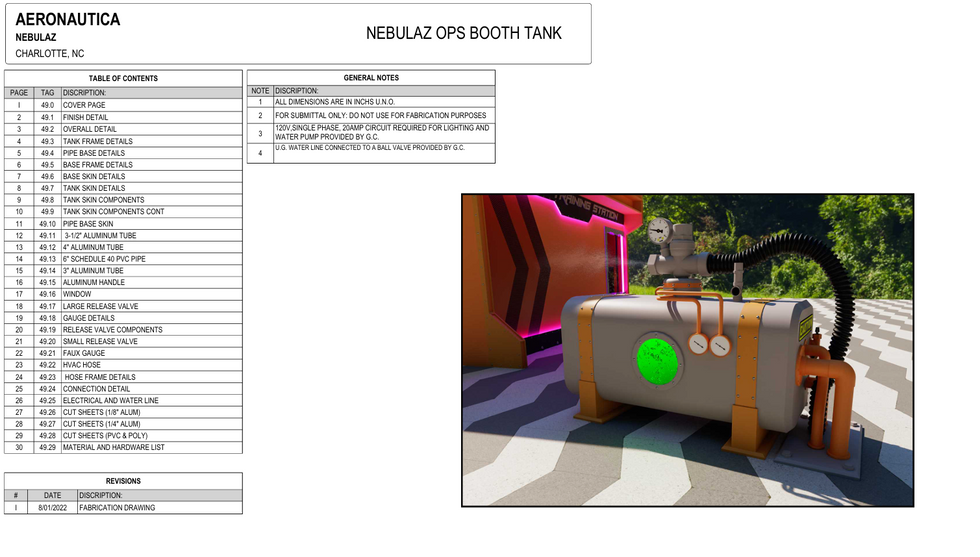

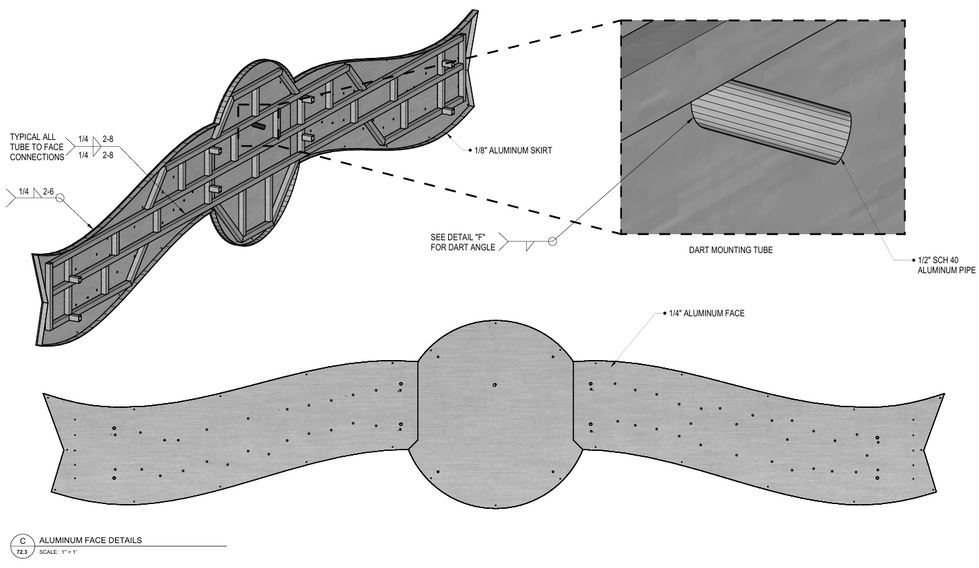

This project showcases a portion of detailed submittal drawings and accurate fabrication drawings for the Carowinds - Aeronautica project. The exterior elements are constructed from robust materials such as aluminum and steel. The client requested a semi-photorealistic rendering on some of the submittal drawings, as seen on the Nebulaz Booth and Tank. All fabrication drawings also include installation instructions, dxf "cut" files for CNC machines, and material/hardware take off lists (BOM).
